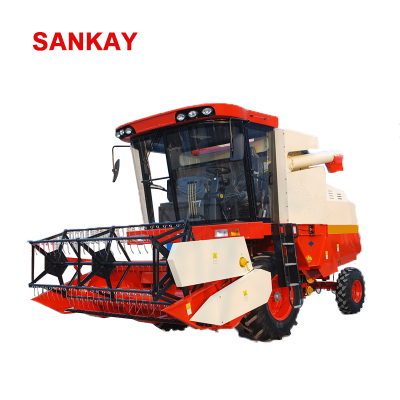

This machine is suitable for soybean combine harvesting, it can harvest wheat , dry farm rice and other croppers after changing special parts. This harvester is researched and produced by our company which is mainly used for soybean harvesting. They are featured by compact structure, convenient maintenance, high production efficiency, functional reliability and other features.

ter

1. It adopted double rollers, cutting roller is in front, axial flow roll is in the back. It obtains good separate effect , lower break rate, little machine damage and good harvest effect.

2. It adopted quality gearbox, rear axle is adjustable.

3. It adopted new spring-tooth and cutter floating device, the conveying trough adopted the way of undershot type.

4.


5. It adopted Vortex fan, advanced vibrate cleaning technology and double riser technology. The separate and recovery device could separate beans effectively.





   Specification of Self-propelled Soybean Combine Harvester

   -propelled Soybean Combine Harvester


   Model	4LZ-1.2	4LZ-1.6	4LZ-2.0
   Dimension (L×W×H) (mm)	5860X2450X2850	7050X3100X3280	7050X4000X3280
   Matched power (kw)	44	66	66
   Total Weight (kg)	2810	4320	5100
   Cutting Width (mm)	1950	2750	3250
   Cutting Height (mm)	30-80	30-80	30-80
   Feed (kg/s)	1.2	1.6	2.0
   Ground Clearance (mm)	250	250	250
   Total Loss Rate	≤3%	≤3%	≤3%
   Impurities Rate	≤5%	≤5%	≤5%
