20hp small tractor mini diesel tractor price with big discount

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

Qingdao

0 /0

T/T

Quantity:

Send Enquiry
Product Details

China fully automatic hydraulic baling press

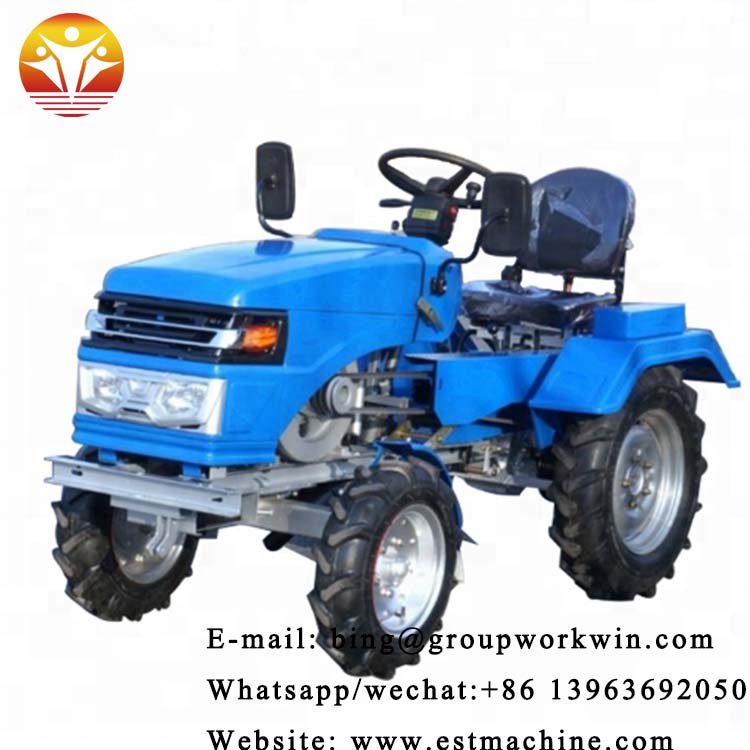

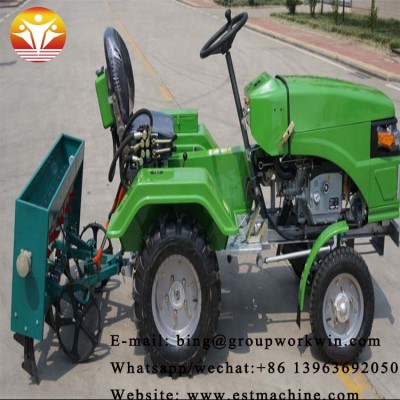

20hp minitractor 1.jpg

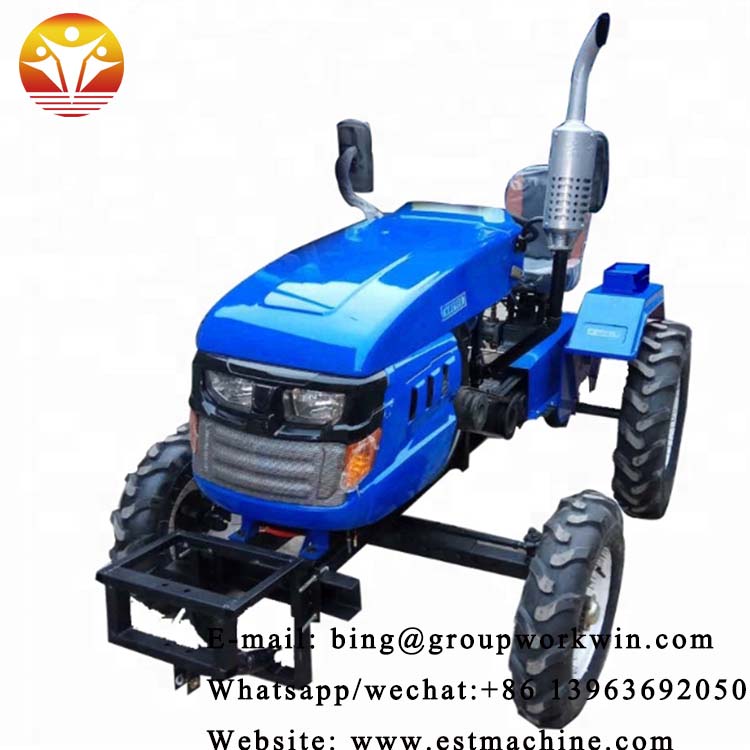

20hp minitractor 2.jpg

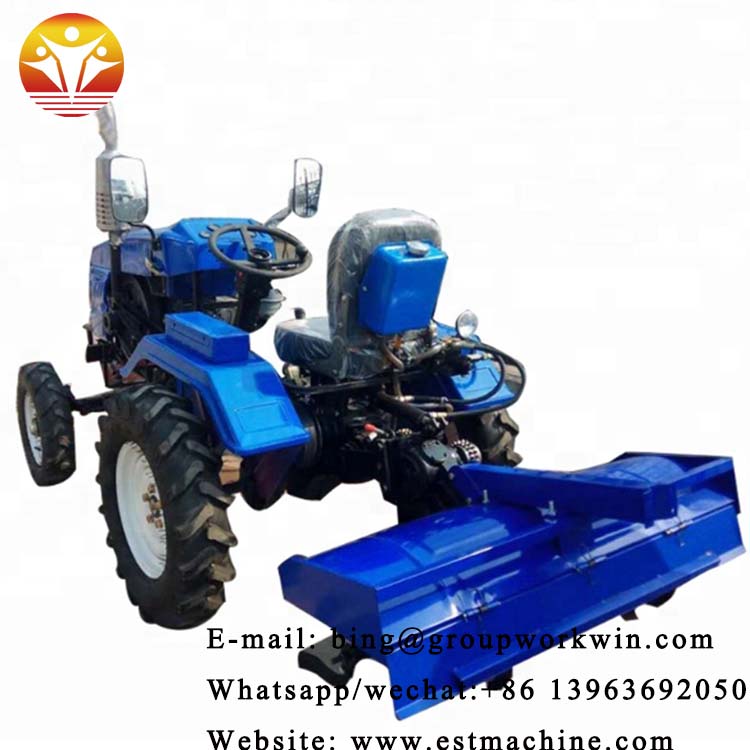

20hp minitractor 3.jpg


1.Farm tractors price adopt renowned directly injection vertical water cooled 4-stroke YTO/YUCHAI engine.

2.China cheap tractors cltuch:Single,Dry,Dual Stage Type.

3.Our farm tractors wheel tread F/R(mm):1200-1500(4 WD)/1400(2 WD),1300-1600.

4.PTO:φ38,8teeth φ35,6teeth,Speed:540/760.Linkage:II Rear Mount 3-point Linkage.

We can produce customized all sorts of small, medium, large tractor, diesel type, electric type can be customized production, walking tractor 5 HP - 20 HP,   medium-sized tractor 15 HP - 110 HP tractor, and 120 HP to 140 HP large farm tractors,and We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.


NOTE:The price is For 18Hp tractor:

model

SIN150

SIN154

SIN184

Engine model

1100NM

1100NM

1105NM

Single cylinder, Horizontal, Four Stroke, Direct Injection

Rated Rev.(rpm)

2200

Rated traction force(KN)

3.2

3.5

4.1

Front wheel tread(mm)

730-780 adjustable

Rear wheel tread(mm)

700~800 adjustable

 Front wheel tire

5.00-12

5.00-12

5.00-12

Rear wheel tire

6.50-16

7.50-16

7.50-16

Gear box

F6+R2

Clutch

One stage, single disc, dry, constant mesh

Starting Method

Electric, 12V starter

Rated Power(KW)

11.03

11.03

13.2

Wheel base(mm)

1080

1150

1150

Overall size (mm)

1760*910*1000

1850*980*1100

1850*980*1100

40HQ quantity

(with tiller and plough)

42 sets

32 sets

32 sets

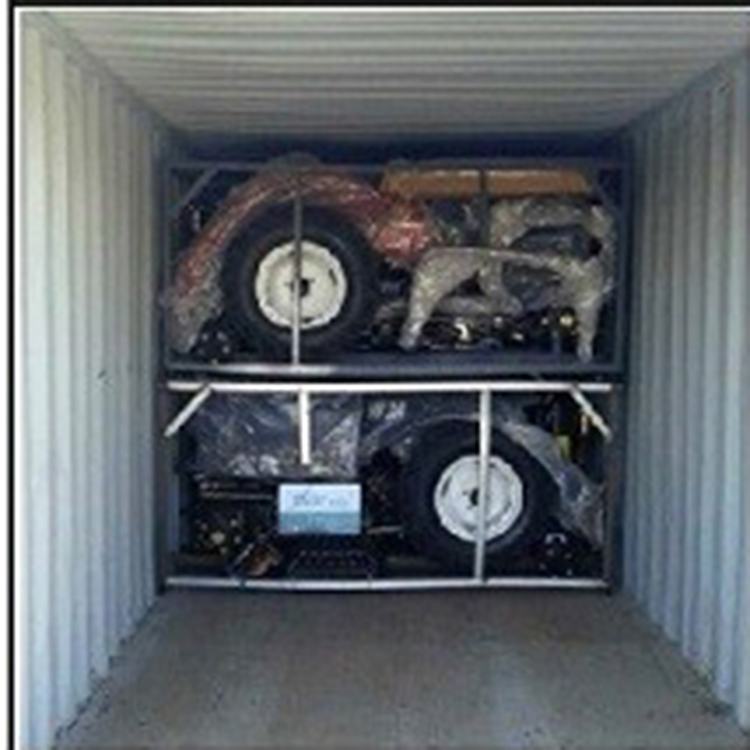

One set package

(plywood)

2250*1450*1460


Factory supply new model 20-40hp mini garden tractor price

Electric start, 2 * 2 wheel, half-rack, belt drive, hydraulic lifting, dual valve, double pipe, double-plate dry clutch, mechanical steering wheel, basic hood (D), 400-10 / 650- 16 tires, 45A battery,differential mechanism in gear-box.



Model No.

SIN-20E

SIN-25E

SIN-30EA

Power

20HP

25HP

30HP

Diesel Engine Models

CF13NM

CF15NM

ZS1100B



  • Selling Units:  Single item

  • Single package size:   225X145X146 cm

  • Single gross weight:  500.0 kg

  • Package Type:  wooden case packing

  • Lead Time  15
