Mini Small Farm Tractor For Big Sale With High Quality

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

qingdao

1000 /0

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Other

Quantity:

Send Enquiry Add To Cart
Product Details

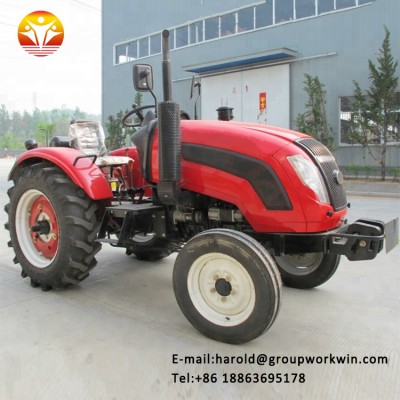

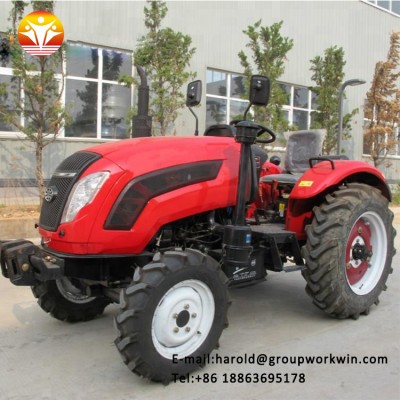

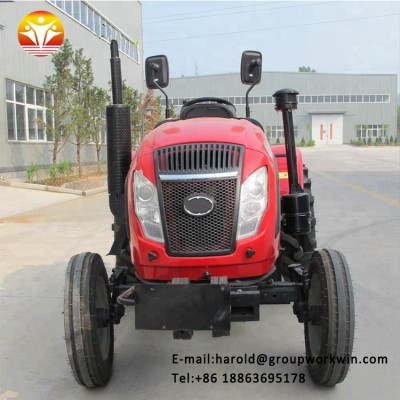

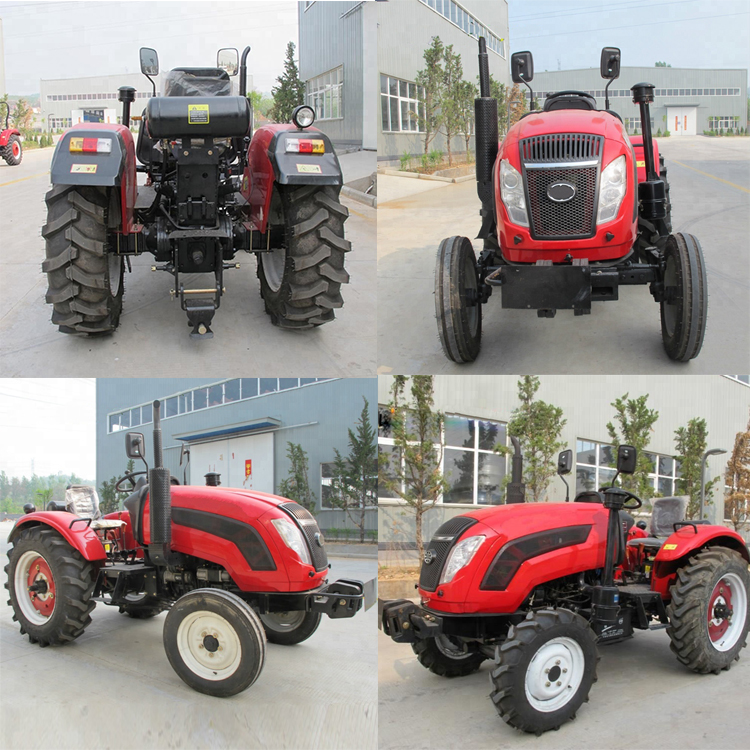

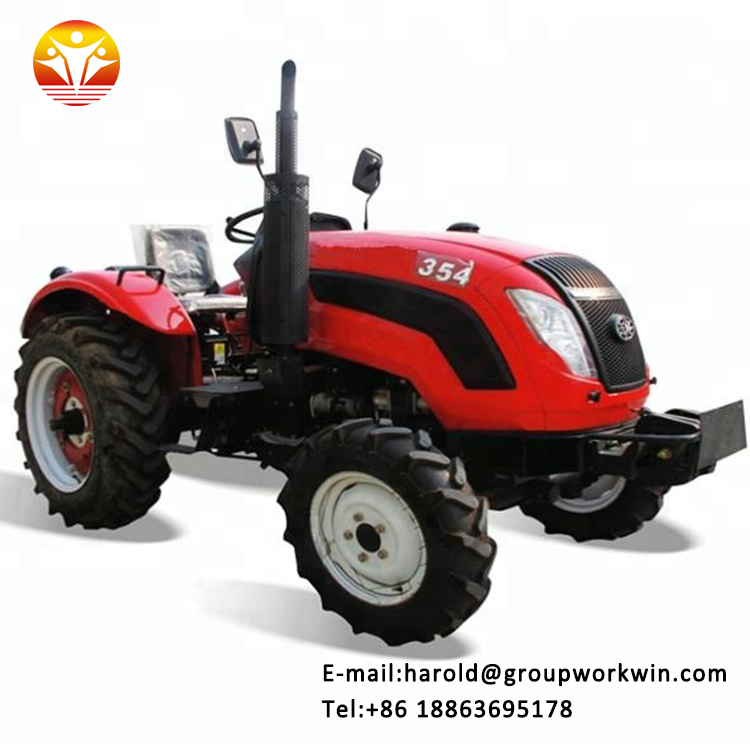

Mini Small Farm Tractor For Big Sale With High Quality




Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations.





Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations. Can also do fixed operation power. It consists of engine, transmission, walking, steering, hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices. The engine power is transmitted from the transmission system to the driving wheel, which makes the tractor run. In real life, rubber belt is commonly used as the power transmission medium.


1. Careful handling of "boiling" when cooling water "boiling" should be handled cautiously. The correct way is to make the engine run at medium speed, open the radiator cover, release hot gas, and then slowly add cold water after cooling. When opening the radiator cover, the operator should stand in the upwind position, face not toward the nozzle, in order to avoid being scalded by the hot water spraying out.

2. To keep the cooling system clean before summer comes, the cooling system should be thoroughly cleaned to make the water pipes of pumps and radiators unblocked and ensure the normal circulation of cooling water. In addition, weeds and other substances attached to the radiator surface should be removed in time.

3. Prevent leakage of water cooling system mostly occurs at the pump shaft sleeve, at this time, tighten the water seal pressure nut properly. If the filler is invalid, it should be replaced in time. The filler can be wrapped with asbestos rope coated with graphite powder.



Technical Specification

No.

Item

Unit

Specification

1

Model

/

WSL-354-T

2

Type

/

4X4 (Four Wheel Drive)

3

Overall Dimension ( L*W*H )

mm

3420*1560*1930

4

Wheel Base

mm

1870

5

Tread (Front / Rear) Gauge

mm

1200 / 1100-1300

6

Minimum Ground Clearance Distance

mm

318

7

Minimum Working Quality

kg

1245

8

Maximum Ballast Quality (Front / Rear)

kg

112/ 80

9

Gear ( Forward / Reverse )

/

8F+2R

10

The Theory of Velocity

km/h

Forward: 1.71-26.13

Reverse: 2.65/10.43

11

Engine

Model

/

Four cylinder, vertical, wawter cooled, four stroke diesel engines

12

Item No.

/

YD4RT8

13

Bore X Stroke

mm

4-90X95

14

Rated HP

kw

25.7

15

Rated Speed

r/min

2400

16

Transmission System

Clutch Type

/

9" dry double-action

17

Gearbox Type

/

(4+1)×2

18

Steering and Braking System

Steering System Type

/

Hydraulic Steering

19

Braking System Type

/

disc brake

20

Running System

Tyre Type

/

6.0-16/9.5-24

21

Working Device

Suspension System Type

/

Rear Three-Points Links

22

Suspension System Catagory


Catagory Ⅰ

23

Hydraulic Output Device

/

One Level

24

The No. of PTO Shaft Splines

/

6 Keys

25

The PTO Shaft Speed

r/min

540/1000
