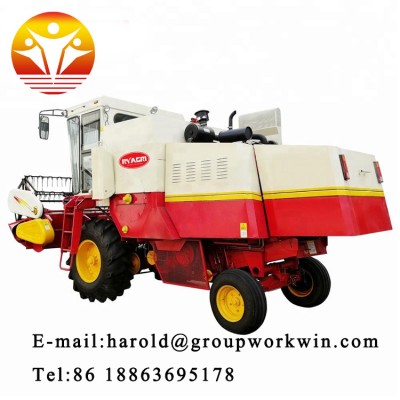

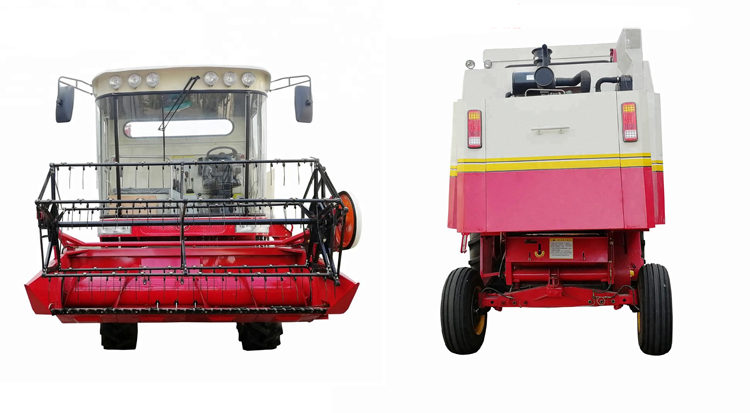

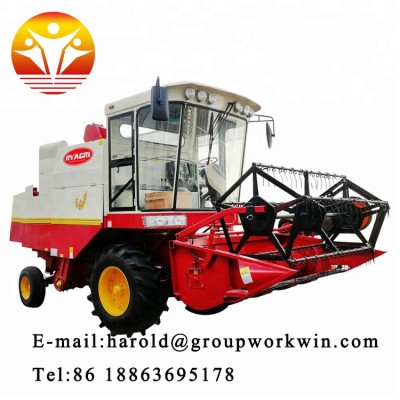

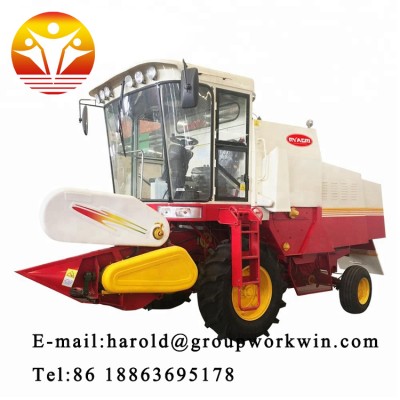

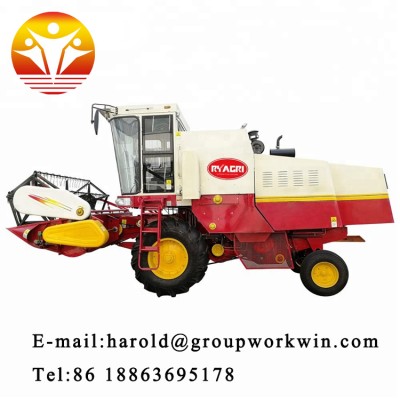

Self-Propelled small rice / wheat grain harvester for sale
  • >= 2   US $13,000.000

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

Qingdao

200 /Month

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Other

Quantity:

Send Enquiry Add To Cart
Product Details



atest cab, the layout in the cab is more reasonable and the operation is more convenient  Latest seat, comfortable and breathable  Latest streamlined arc cover, beautiful shape of the vehicle, easy to open

Optimize the cleaning system, adjust the structure of the jig plate, reduce the movement resistance, and make the performance more reliable; adjust the lifting speed and improve the grain lifting capacity

The fan uses a multi-blade fan to adjust the fan drive structure, the wind speed is uniform, and the cleaning effect is good

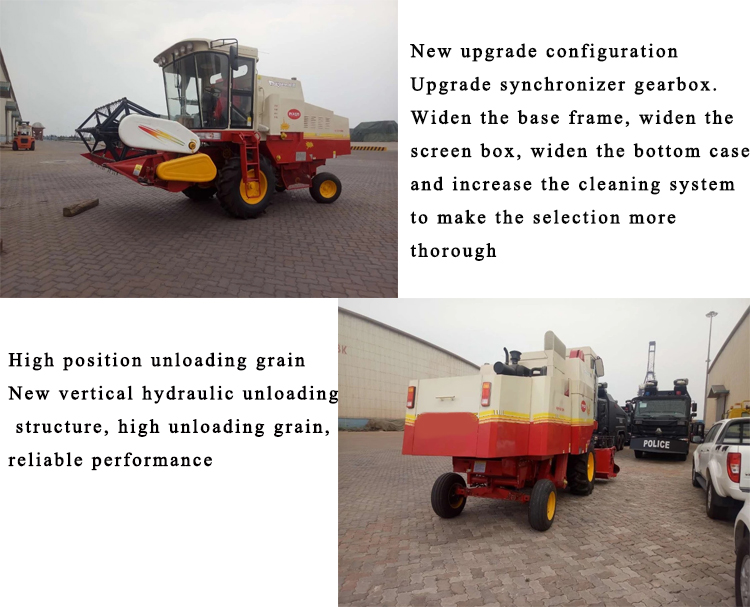

New vertical hydraulic unloading structure, high unloading grain, reliable performance.
Optimize the threshing system, adopt a new type of reinforced roller shaft, reduce the failure rate, and strengthen a type of agitation shaft to reduce the failure rate.
Configuration of a new centralized refueling device makes it more convenient to add fuel to each part of the bearing.
Optimize the electrical system, equipped with electronic throttle, more flexible and convenient to operate; using new combination meter, features more abundant.
The use of State III emission superior engines has strong power and reliable performance.
The use of a new type of left and right arrangement of tanks, cooling effect.
Configuration of new brakes, with rear brake, better braking effect.

Optional 2.5 or 2.36 meters header, more efficient harvesting.
The new type of hooking header bridge, easy to install and remove.
After swapping special headers, corn and grains can be harvested.
Latest patented commutator.


Item

Unit

4LZ-2[2058]

Structure

/

wheeled self-propelled full feeding

Engine

Model No.

/

YC4A80T

Matched power

hp

100hp

Rated speed

r/min

2200

Overall Dimension(L*W*H)

mm

6740*2940*3260

Total weight

kg

4520

Cutting width

mm

2500

Feeding amount

kg/s

2.5

Min ground clearance

mm

250

Advancing speed during work

km/h

3.43-7.61

Working efficiency

hm²/h

0.5-0.9

Fuel consumption per unit area

kg/hm2

≦25

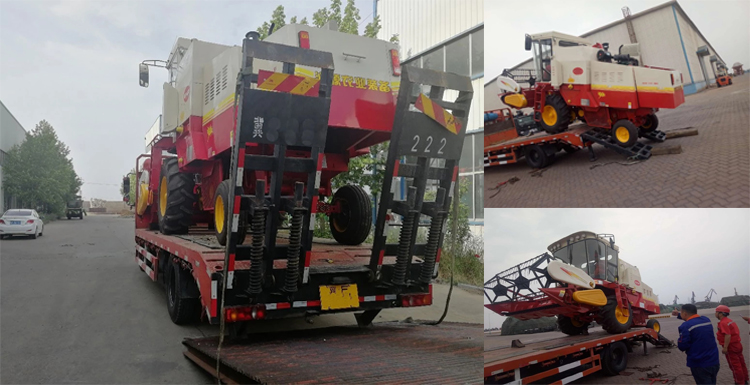

Normal packing or According to your requirement.Safe, complete and fast delivery of goods to customer



Our main product lines: tractor series, agricultural cultivating machinery series, spraying series, harvesting machinery series, post-processing machinery series,casting and forgings series. Our farm implements could match with domestic tractor (FOTON, YTO), and foreign famous brand tractor (JOHN DEERE, NEW HOLLAND, KUBOTA etc.)

We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.


Q1: How about your company?

A1: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.

Q2: What is the MOQ?

A2: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.

Q3: What is the delivery time?

A3: 15-20 working days after payment.

Q4: What about the package?

A4: Iron frame or iron crate.

Q5: Can I put my brand name on your agricultural machines instead of your brand name?

A5: Yes. We could do OEM/OBM.
