Manufacturer CE hydraulic small round hay baler with factory price

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

Qingdao port

260 /Month

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Other

Quantity:

Send Enquiry Add To Cart
Product Details

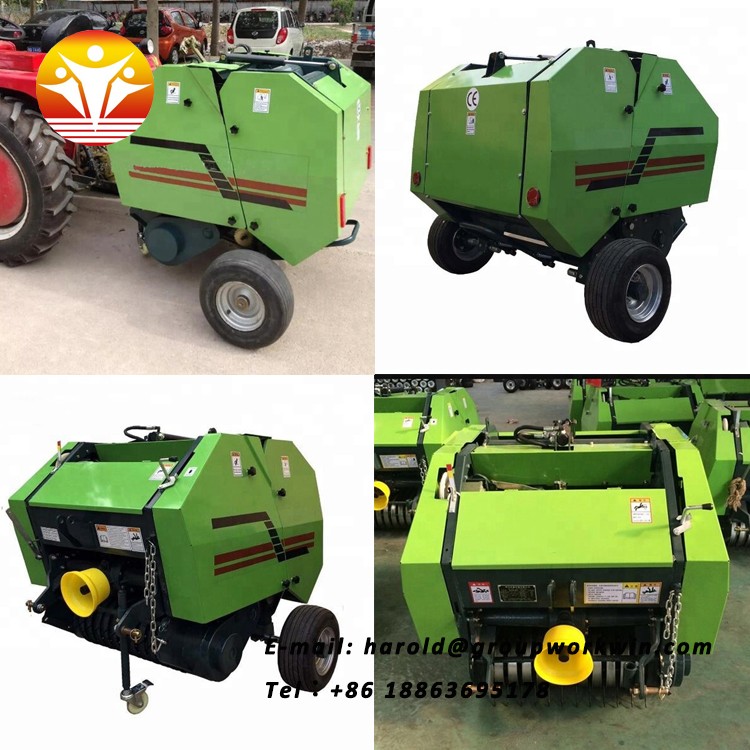

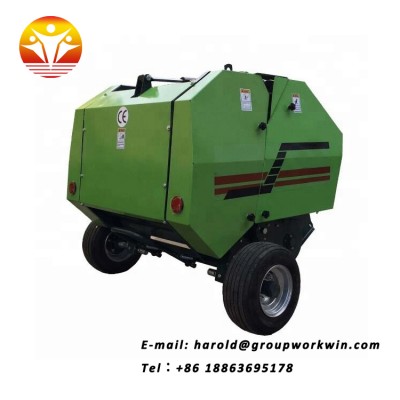

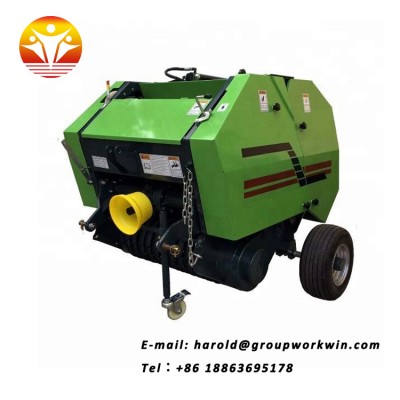

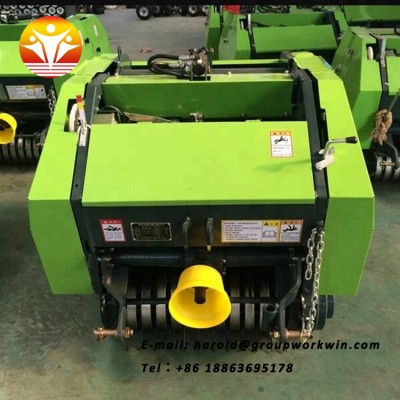

Manufacturer CE hydraulic small round hay baler with factory price

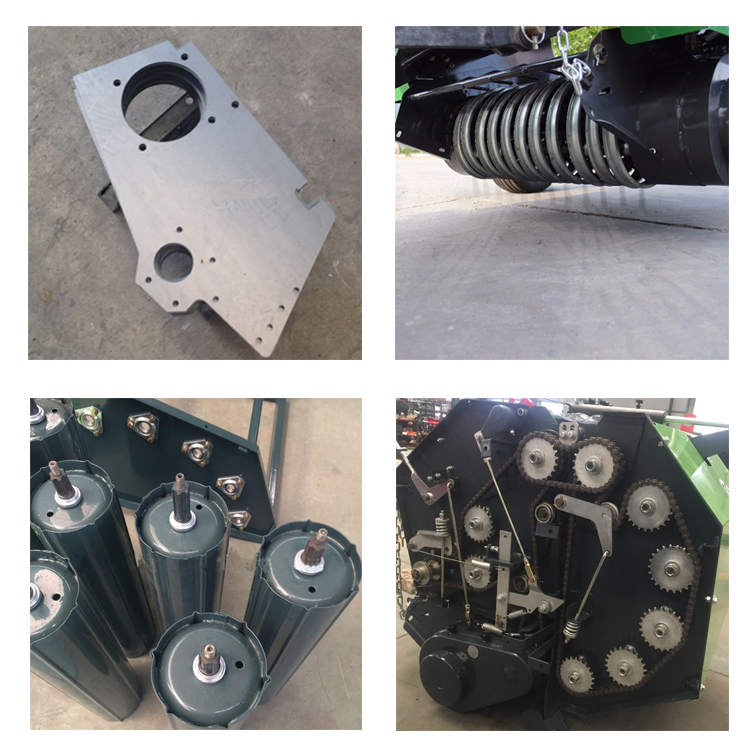

The straw bundling rope coiling machine consists of main machine, pick-up part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 15-90 HP tractor by PTO shaft. Automatic operate: led rope, pick up wheat straw hood, bundle , cut twine automatically, can cut through the tank round the size of the adjustment, to come loose, not messy.

1). The power conveyor driven shaft release the power to bundling machine's power-input shaft through universal drive shaft when drive the chain, chain sprocket, and rotary platen system and picking system.

 2). The hydraulic power out driving joint control the cylinder piston to enable the bale putting. The baling machine is already adjusted into the suitable height.

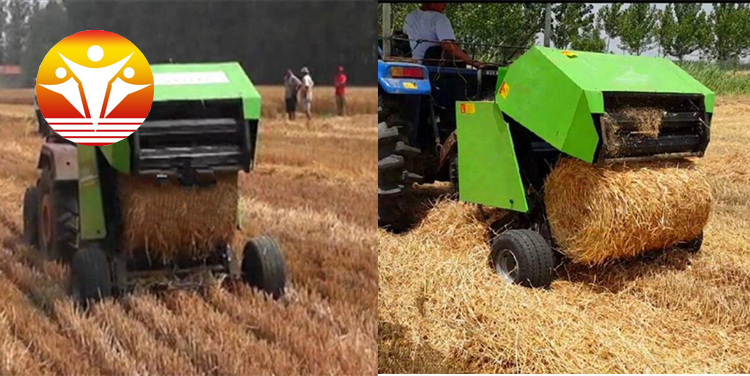

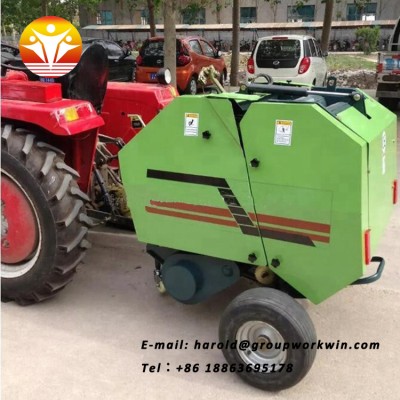

 3). When the machine is going along with the tractor, the hay is picked into rotary platening chamber and rotating bigger and bigger, then get into very tight round bale.When the density of the bale is Ok , the alarming system will start to sound, driver should stop forwarding, push the threading clutch.

 4). When find the speed of threading is faster, loose clutch, keep the Power conveyor driven shaft working to start thread. Driver should pull the hydraulic controlling stick to change the direction of the hydraulic valve, then the cylinder will work and throw the bale out.

 5). After throwing the bale out,correct the hydraulic valve, open rear rack to forwarding again for the second cycle.


Model

RB0870

Type

mini round hay baler machine

Bale size

600*700mm

Matched power

30-50hp

Working width

800mm

Dimensions

1300*1300*1350mm

Efficiency

80-120 bales/h

Weight

440kg

We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.

Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.

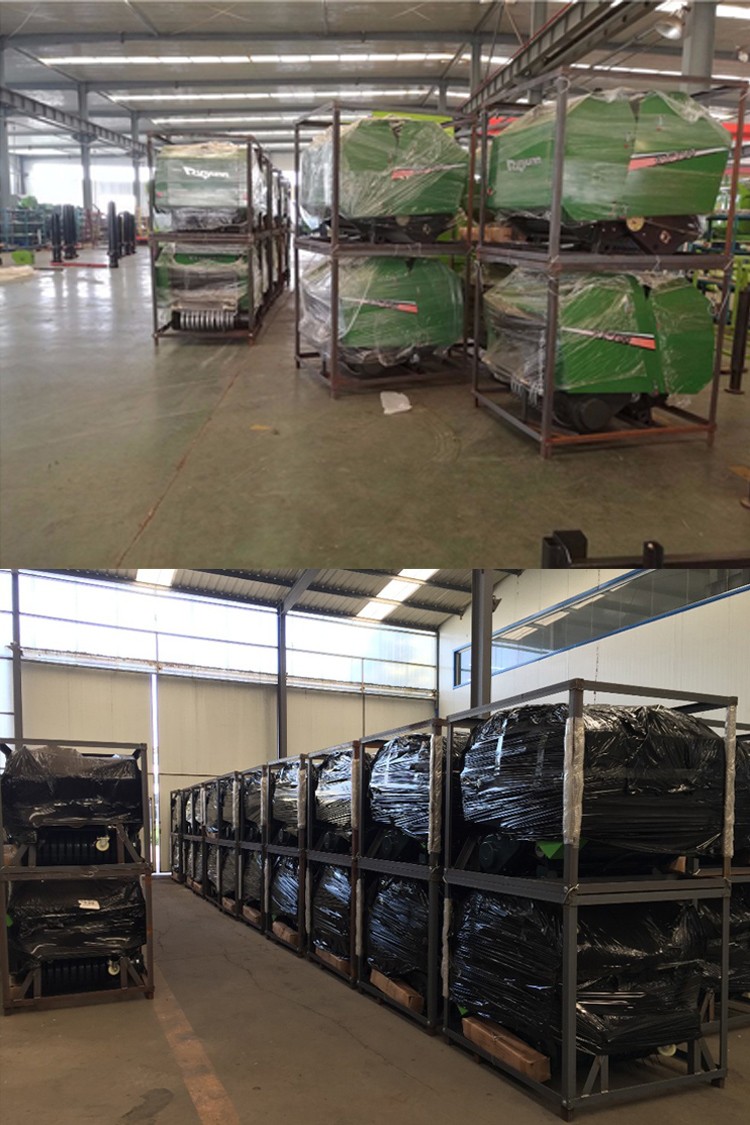

Q1. What is your terms of packing?

A: Iron frame or according to your requirments.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery
