9YA-1.5 Type Mini Round Hay Baler for Sale
  • >= 1   US $9,000.000

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

Qingdao

400 /0

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Other

Quantity:

Send Enquiry Add To Cart
Product Details

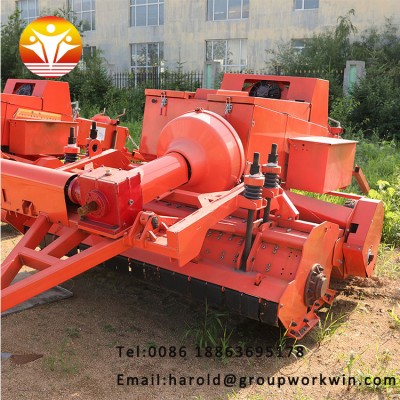

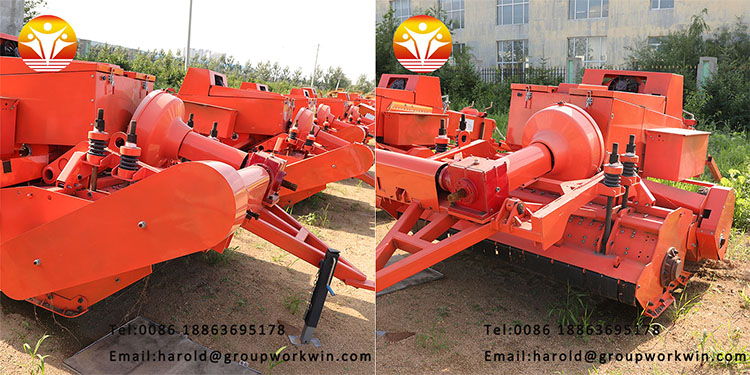

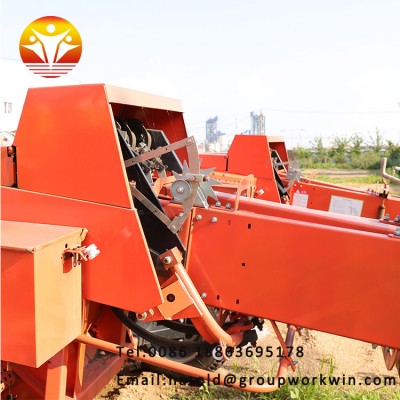

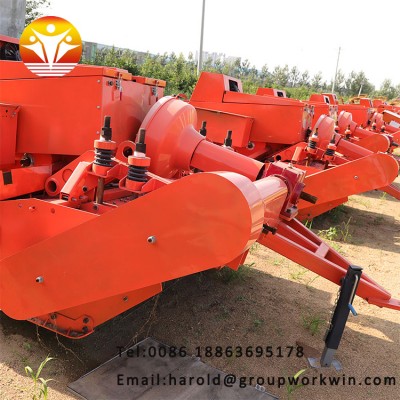

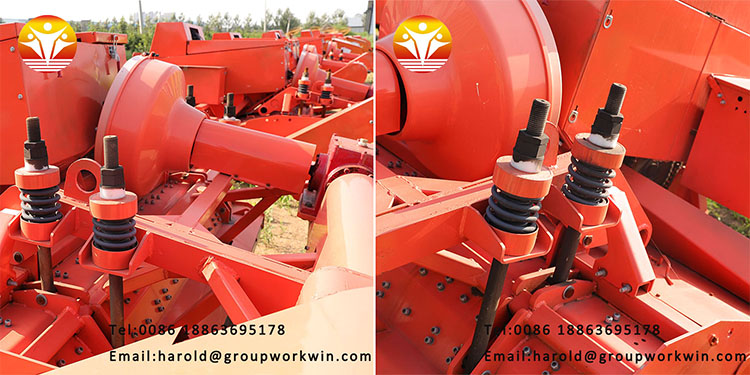

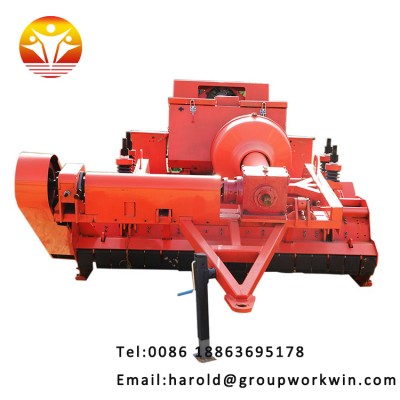

9YA-1.5 Type Mini Round Hay Baler for Sale



It is one kind of professional machine for baling, which is featured by reliable quality, low fault rate and high efficiency, suitable to be operated on the different types of ground.



It is one kind of professional machine for baling, which is featured by reliable quality, low fault rate and high efficiency, suitable to be operated on the different types of ground.



Item

Unit

Specification

 Type


9YA-1.5

Overall Size

Length

mm

4200

Width

mm

2880

Height

mm

2300

Weight

kg

2800

Size of Compression Chamber for Baling

Diameter

mm

1200

Width

mm

1400

Roller   Quantity

pcs

14

Electrical   Control/Operation


Semi-automatic

Bundle Size

Diameter

mm

1200

Width

mm

1400

Bundle   Weight

kg

Stalk<250kg,   Hay<300kg

Feeding System

Pickup


Mechanical   lift adjustment

Pickup   width

mm

2270

Teeth   Quantity

pcs

22 per   row( 4 rows)

 Teeth   Gap

mm

75

Contour   Wheel of Pickup


Adjustable

Other Parameters

Baling   System


Baled   with Rope or Net

 Yield   Rate

Bundle/h

60-70

Supporting   Power

HP

≥75

 Power   Input Rotation

rpm

540

Length   of Cardan shaft

mm

1320

 Tyre   Model


400/360-15.5

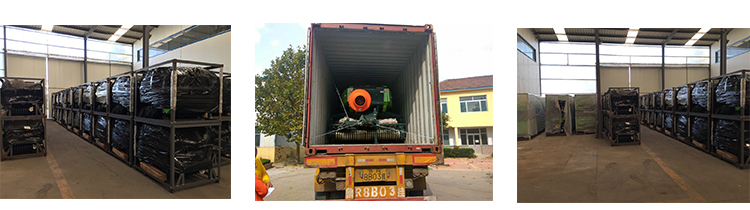

Packaging Details

Waterproof plastic packaging, then wooden box or loading in container

Port

Qingdao port



shanxi  water  group  work  win Co., Ltd. mainly provides enterprises with global solutions for international trade, corporate foreign trade team hatching, operating in a new type of interconnection model,

featuring multilingual overseas mother tongue promotion, and ultra-high order conversion rates. Innovative cross-border platform.


客户来访图 (2).jpg

Biomass fuel has the following major benefits:

1. The biomass fuel calorific
2. High purity of biomass fuel, free from other impurities that do not generate heat
3. Biomass fuel is clean, convenient to feed, reduce labor intensity of workers, and greatly improve the labor environment
4. Biomass fuel is a renewable energy source that saves resources to a great extent and protects the environment.


Q1: Are you a factory or trading company?

A:We are the professional manufacturing factory and we have exported our products to many countries.



Q2: Where is your factory located? How can I visit there?

A:Our factory is located in linfen City( Shanxi Province, China).You can fly to Taiyuan  Airport and we can go to airport to pick you up directly.



Q3: How does your factory do regarding quality control?

A:Quality is priority. We always attach great importance to quality controlling from the beginning to the end. Our factory has gained CE/ISO9001:2008 authentication.



Q4: Could you send engineers to install the machine overseas?

A:Yes.We can send our engineers to help you to install the machine,but you should offer a part of the fees.
