Product Details

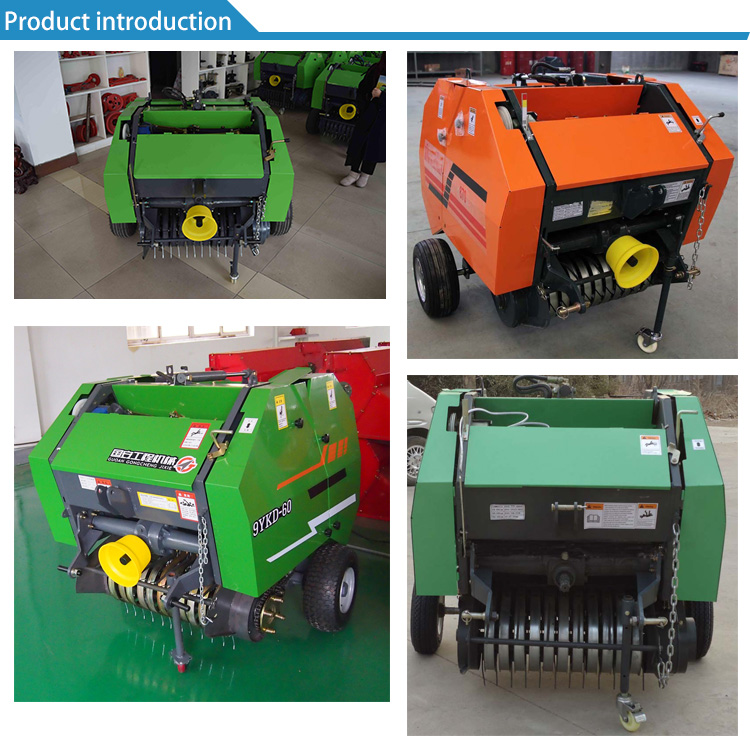

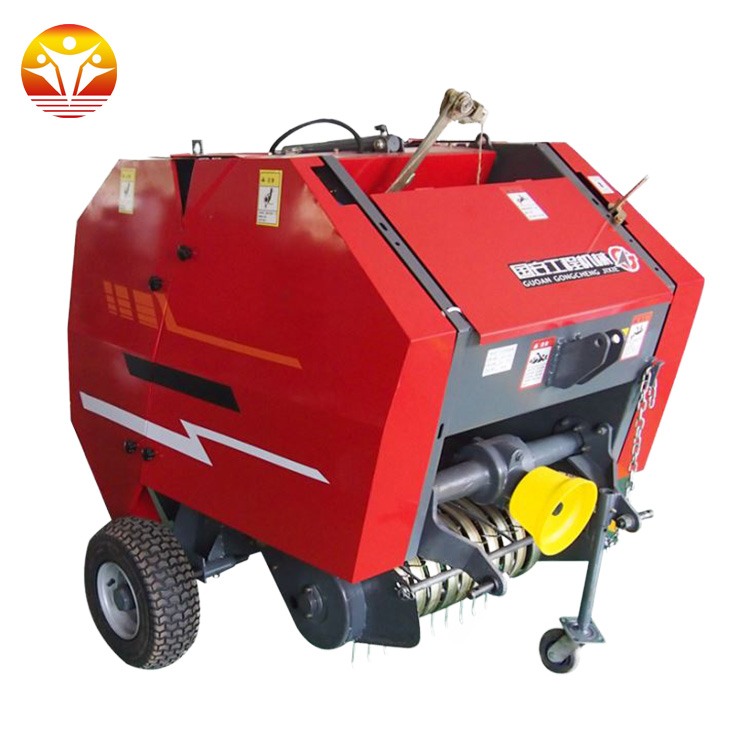

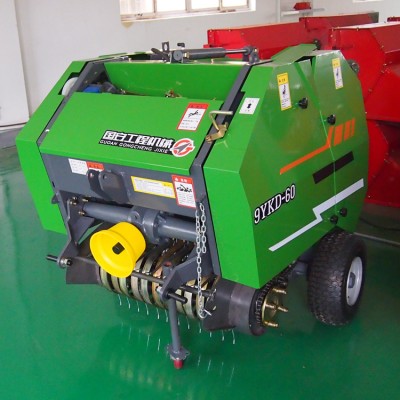

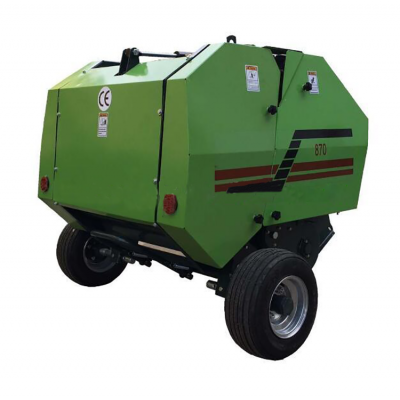

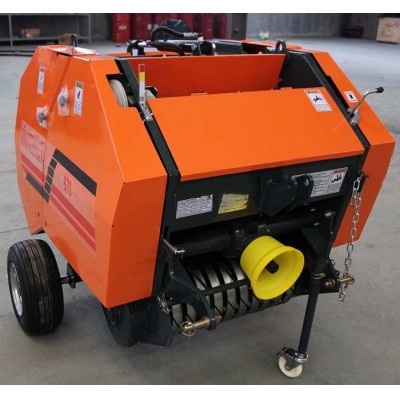

 Mini Round baler for pickingup and bundle wheat straw, rice straw, grass, alfalafa and etc . Weifang Guoan mini round hay baler /round baler /straw baler 1). small volum,light weight,compact structure , easy to operate and store 2). small tractor can power it. 15HP is enough!

Product parameters

Model

850

870/870F

1070/1070F

1090/1090F

Bale   size:dia.*width

50*70cm

60*70cm

62*95cm

80*95cm

Dimension   (L*W*H)

115*130*120cm

131*146*138cm

131*167*156cm

157*167*170cm

weight

400kg

450kg

500kg

570kg

Pickup   width

800mm

800mm

950mm

950mm

Drum   speed

200r/s

200r/s

200r/s

200r/s

Math   power

25-50

25-50

25-50

30-50

PTO   speed

540r/s

540r/s

540r/s

540r/s

Efficiency

2-5Km/h

2-5Km/h

3-8Km/h

3-8Km/h

Productivity

1500-3000Kg/h

1500-3000Kg/h

1950-3900Kg/h

2550-5100Kg/h

Density

115Kg/m3

115Kg/m3

115Kg/m3

115Kg/m3

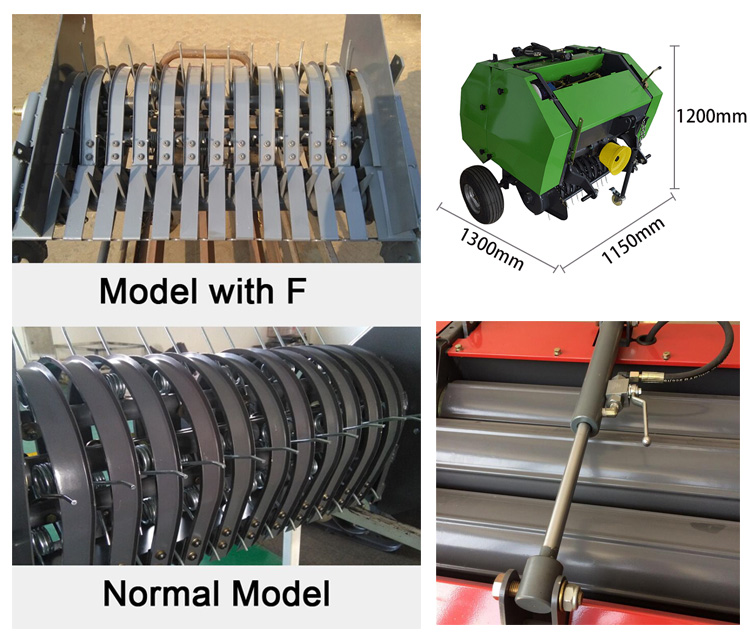

Forced   feeding

/

870F   have

1070F have

1090F   have


1. Our latest automatic solenoid valve can automatically put the bale, and the main material is aluminium alloy, not easy to rust, it can use for many years.

2.Our roller is made of a forming technology, is not easy to wear and tear, no hidden dangers.

3. Our equipment all parts are made of double sealed bearing, no grey, bearing using time is longer, equipment operation effect is better.

4. Our chain adopt high quality alloy, it is not easy to fracture, long life, good transmission effect.

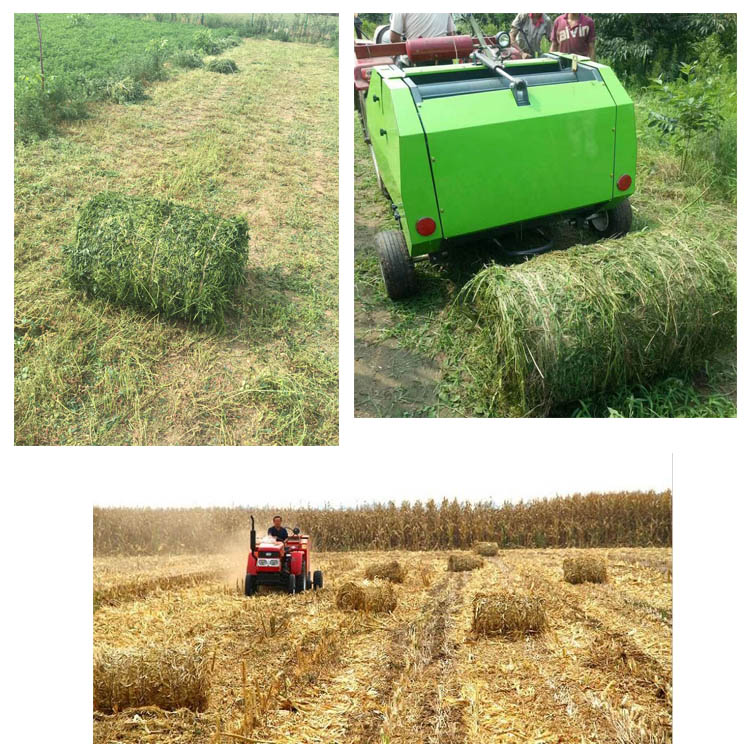

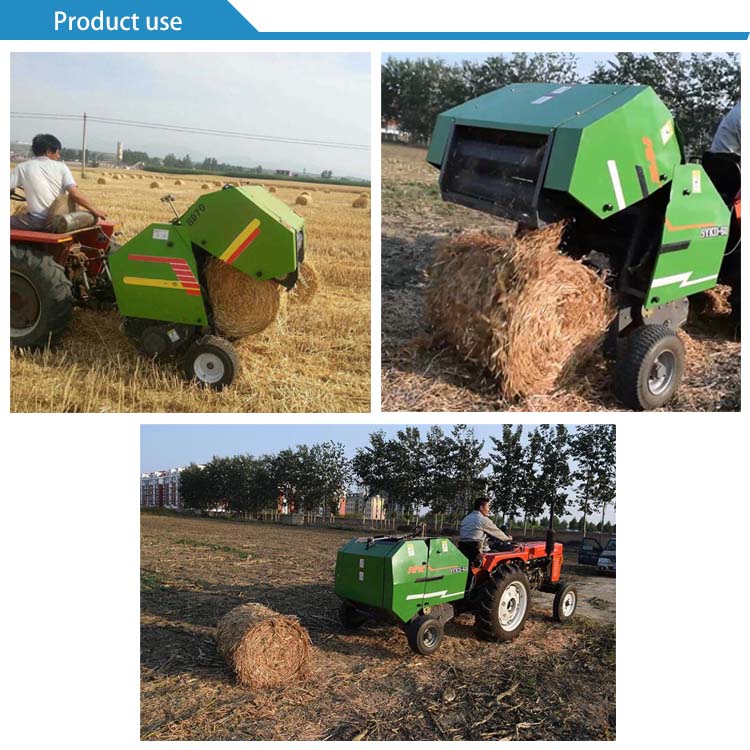

For pickup all kinds of material bales, from hay and straw. Can meet the requirements of mechanized works in Plain and Semihill.

·Matched with 25-50hp Tractors, with a wide adaptability and developed independently according to the market, absorbing and adopting the mature parts technology.

·Pickup Device adopt Spring-tooth type, with good collecting and low loss rate. Can pickup the straw or hay smoothly, without disturbing.

·Side protecting plate of the Pickup Device can better to pickup.

·Driving device produced on axial symmetrically, with good stability and lower gravity center.

·Stamping forming Cylinder has high structural strength.

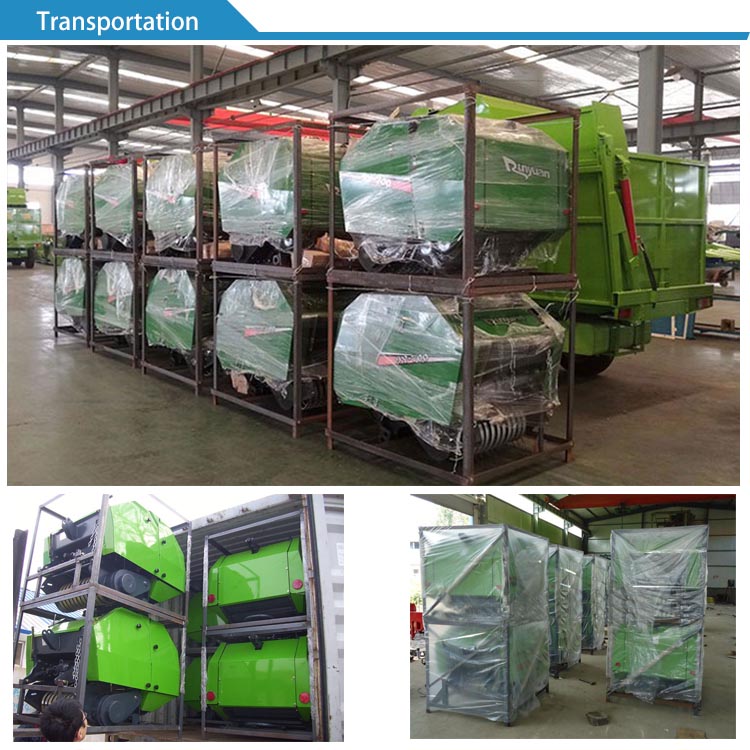

This product supports land and sea transportation, standard export packaging alloy box (surface film and foam for land transporter, marine packaging for marine packaging)

1.jpgOur company has won many honorary certificates in terms of business capability and product quality.

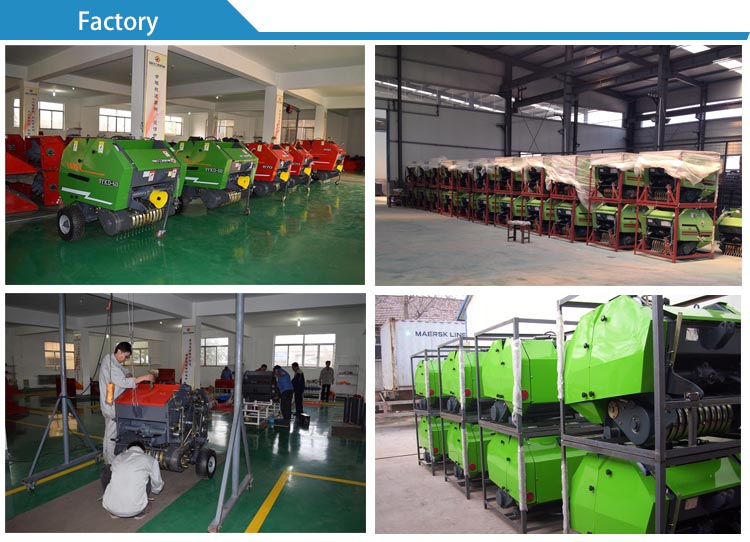

Factory


Our company has won numerous honors with absolute superiority over the years.

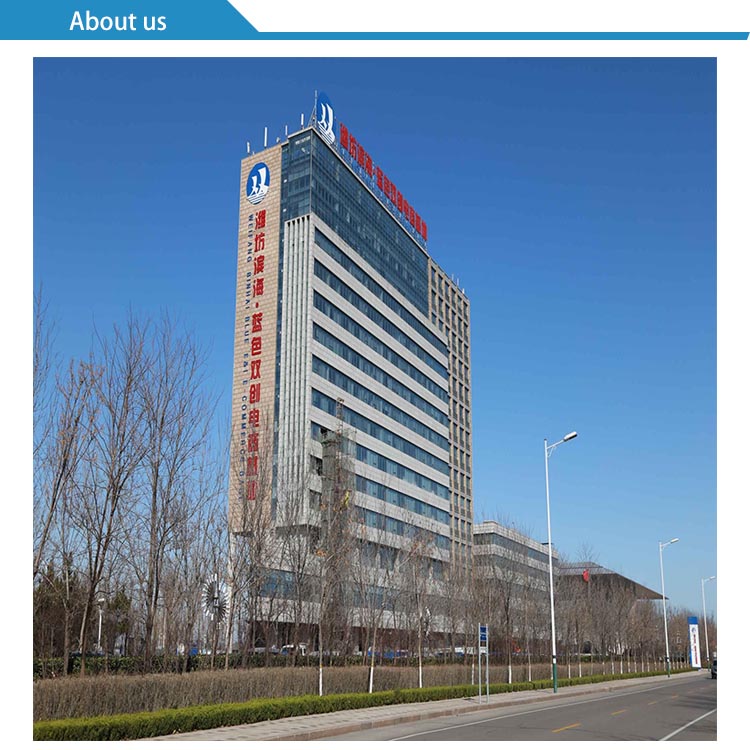

Weifang XiaShan Group Work Win  Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best Agricultural machinery products for the orders.

We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.

Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.


shipping details:

Shipped in 30-60 days after peyment by sea.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* One year warranty

* Training how to install and use the machine

* Engineers available to do machinery service overseas

After-Sales Service

* One year warranty

* Training how to install and use the machine

* Engineers available to do machinery service overseas


1)1. Which machines can be used to move your round-balers?

Our round-balers can be adapted to any brand and model, towed by 20-50 horse power tractors.



2. Are your machines suited to any type of ground?

Yes, our machines can work on any ground, on flat and hilly ground.



3.I have a meadow area that requires grass and leaves to be collected, can your machines help me?

Yes, our machines also can collect leaves and grass.



4.Which solutions do you bind the bales?

We are able to bind the bales by hemp rope. The binding operation is completely automatic.

5.Where can we buy the machine's parts?

Our company can provide machines for your any time
