Product Details

White Brown Rice Milling Machine/Peeling Machine/Dehulling Machine

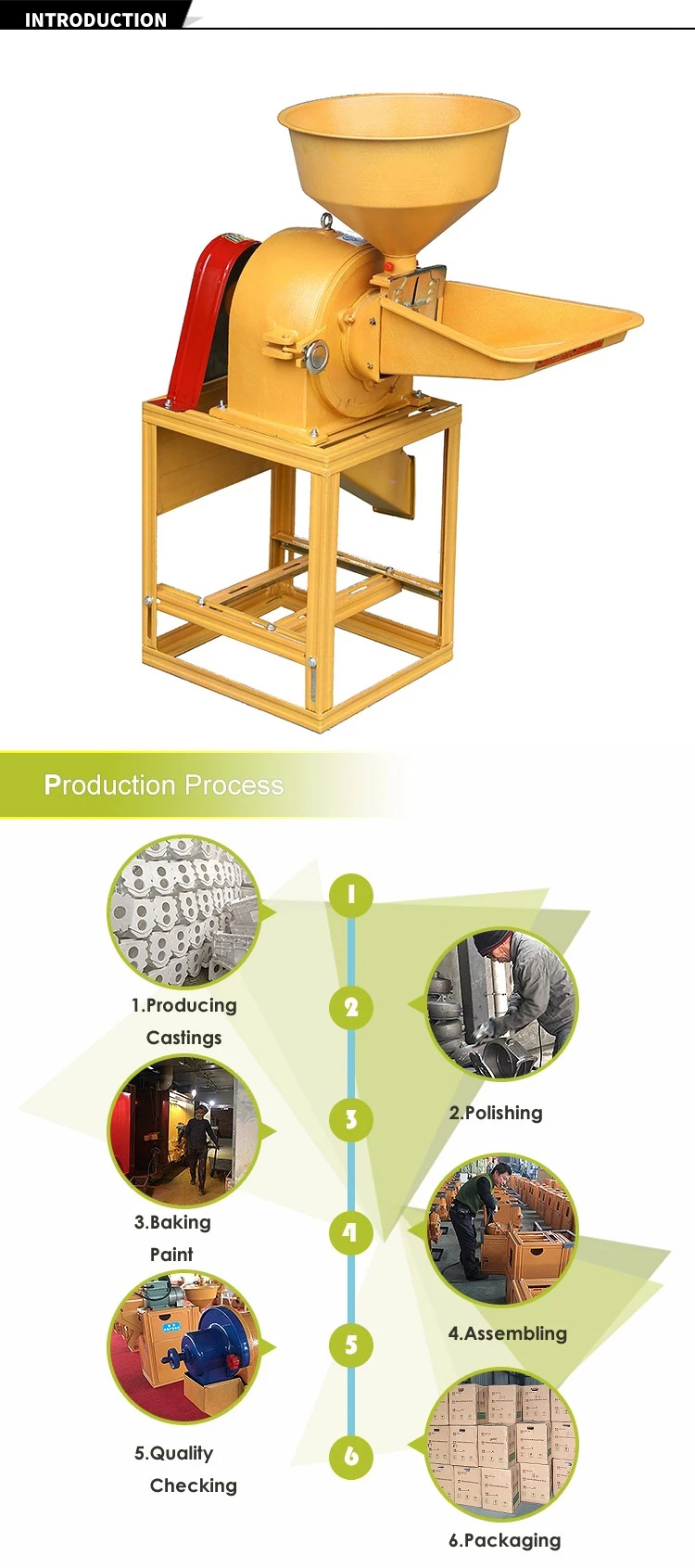

Grinding consists of feed hopper, rotor, crushing chamber, the fixed fluted disc, powder sieve, machine casing, machine frame and other parts. When material is sent into the crushing chamber moderately from the inlet , under the action of high speed blow and strong bump rub from the tooth claw (hammer slice) , quick break into fine powder, and then discharge powder through the discharging hole under the effect of centrifugal force and air flow .

Rice milling machine consists of feed hopper, propeller, rice milling, rice sieve, knife, rice roll, discharging hole and other parts. Paddy is sent into the milling chamber by the feed hopper, grinding process white under the joint action of the knife, sieve and rice roll, and then discharge  by the discharging hole.

Product parameters

Model Number

9FZ-20

Certification

JB/T6270-2013

Dimension(L*W*H)

665x380x1050

Rmp

5600r/min

Rotor Diameter

190mm

Packing Size

380x340x530

Power Consumption

≤22KW.h/t

Weight

29.1kg

Power(kw)

2.2kw

Voltage

220v

Production Capacity

≥150kg/h

Bearing Temperature

≤25

Sounds

≤90dB(A)

Provided Warranty

1 year


Rice milling and grinding combinational machine has advantages of reasonable matching, versatility, simple and compact structure, convenient operation and maintenance, reliable performance, affordable and so on advantages. Feed grinder can be widely used in rice, corn, all sorts of granular grain and straw material crushing. Rice mill  can be processed into polished rice in one time, completing separation of rice, rice bran, broken rice at the same time. It is widely used in the majority of rural households and chemical industry, food, brewing, aquaculture and other industries.


We can supply carton box, wooden box and plywood box as your requirements.

Our company has won numerous honors with absolute superiority over the years.

About us.jpg客户拜访图.jpg

Weifang XiaShan Group Work Win Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best Agricultural machinery for the orders.

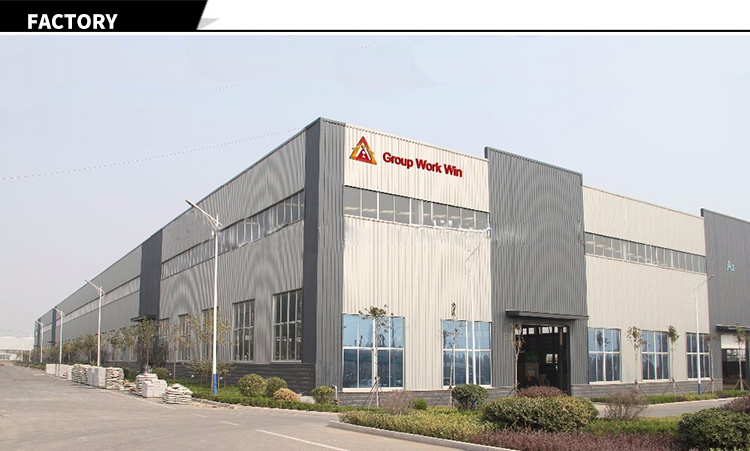

We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.

Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.


Q1.May I purchase one sample, or place mix order?

A:Yes, of course, MOQ is 1 pc, and you also can mix different models as you wish.

Q2.Could you offer more information and quote a best price?

A:Yes, certainly, we can supply product catalogues and company profile for your reference. You can choose one or some models, and we will offer best price for you.

Q3.What are your terms of packing?

A:We can supply carton box, wooden box and plywood box as your requirements.

Q4.What are your terms of delivery?

A:FOB CFR CIF EXW FCA

Q5.How about product warranty?

A:One Year. After that we can still help your us ing. Feel free to tell us if any question.
