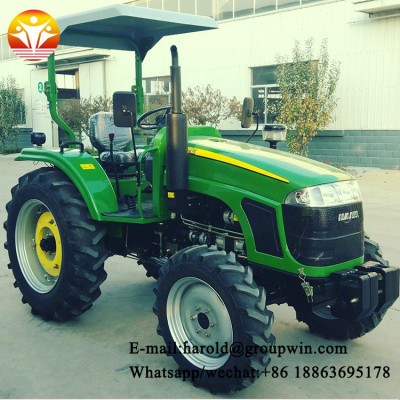

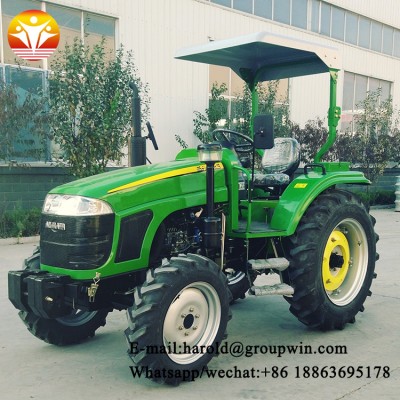

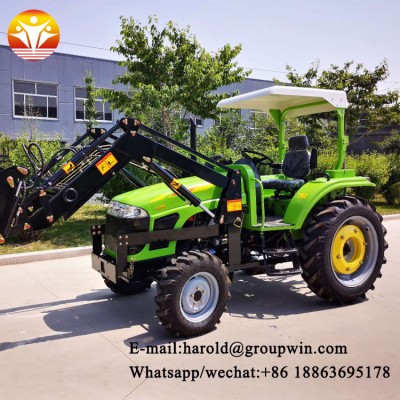

multi-purpose mini farm tractors
Convenient and sensitive, suitable for a variety of land, more functions.
Product parameters
Model | SD604 | ||
Type | 4WD Wheeled Type | ||
(mm)Dimensions of Tractor | Length(With front ballast) | 3835 | |
Width | 1620 | ||
Height(to the exhaust vent) | 2135 | ||
Tread | Front Wheel | 1300 | |
Rear Wheel | 1300 | ||
Axle Base | 1910 | ||
Min.Ground Clearance | 410 | ||
(kg) Structure weight | 1665 | ||
Ballast weight | Front ballast | 112 | |
Rear ballast | 100 | ||
Rated traction force (kg) | 850 | ||
Engine | Model | 4105 | |
Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | ||
Rated Power(kw) | 44.11 | ||
Rated speed (r/min) | 2400 | ||
Fuel | Diesel | ||
Tyre | Front Wheel | 6.50-16 | |
Rear Wheel | 11.2-28 | ||
Clutch | Dual-stage clutch | ||
Steering | power steering | ||
Transmission Type | 8F+2R or 8F+8R with shuttle gearshift | ||
Suspension Type | 3-point links | ||
PTO | Type and Rev | Semi-independent Type 540/1000 | |
Spline Size | F35 Rectangle Spline with 6 teeth | ||
Structure and specification are subject to change without notice. | |||
Iron crate
Our company has won numerous honors with absolute superiority over the years.
Weifang XiaShan Group Work Win Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best Agricultural machinery for the orders.
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
1 . Tractor Logo
We have our own logo. And we also can make your own logo in your order for free.
2 . Tractor Options
Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire, Turf Tire or as per your requirements.
3 . Spare Parts
Free toolbox and easy wear parts.
4 . Shipment
We can help you arrange shipment.
5 . Delivery Time
Usually 30 days
6 . Warranty Time
Complete service system, 12 months since arrival of destination port
7 . Payment Terms
We accept 30%T/T in advance, and 70% T/T before shipping or L/C at sight.
